SSB Electronics
LT2S Instruction Manual & Circuit Diagrams

These images have been gratefully received courtesy of Mans Grech, 9H1GB.
Mans has provided both Low-res and high-res images of the LT2S manuals and CCT Diagrams.
The high-res images are both English and German so there will be a set for most users' requirements.
However, these images come in at approx 1MB each page with the circuits each a minimum (in JPEG) of 3MB. As this is much too large for many web users I intend to post-process the high-res images to (hopefully) reduce the filesize while retaining the detail.
While I am working on that I'm pleased to provide these low-res JPEG files for immediate consumption.
' enjoy.

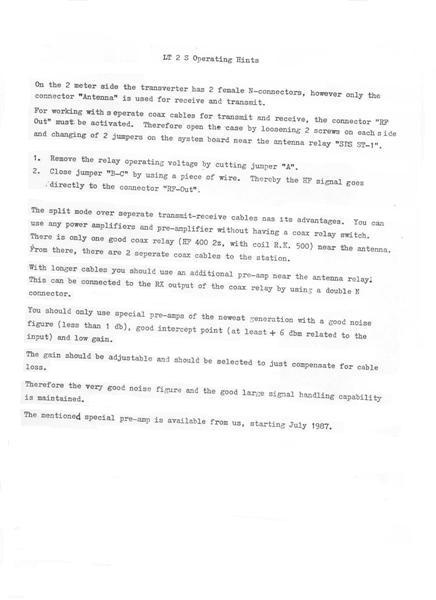

Page 1

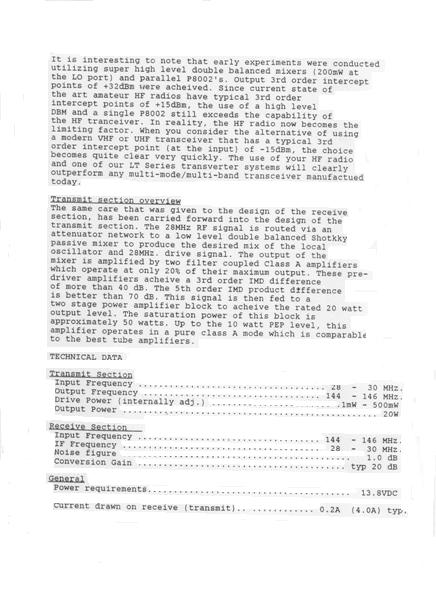

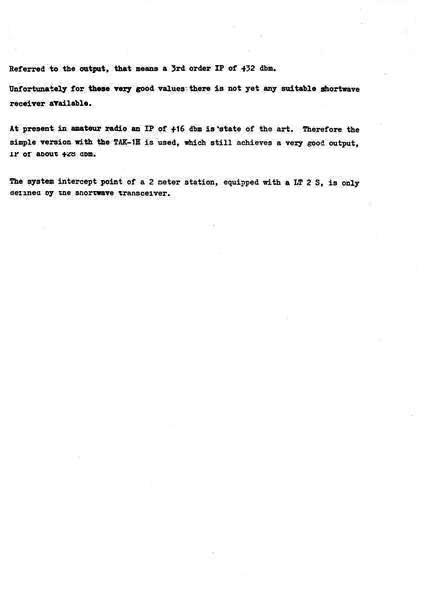

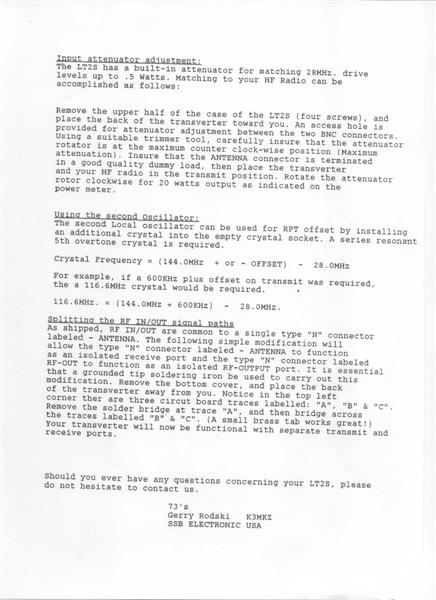

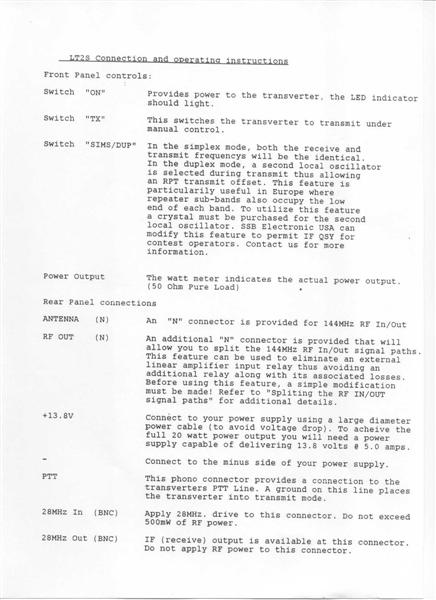

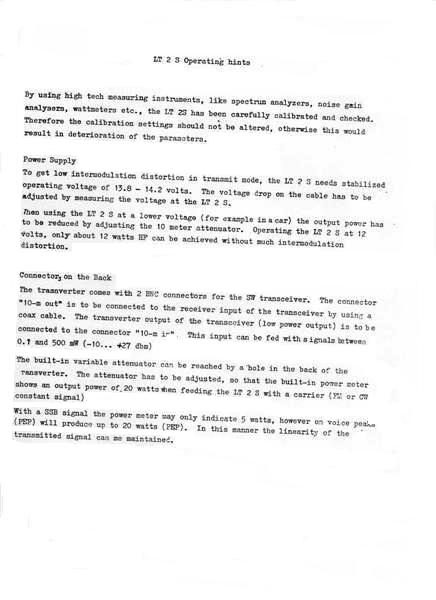

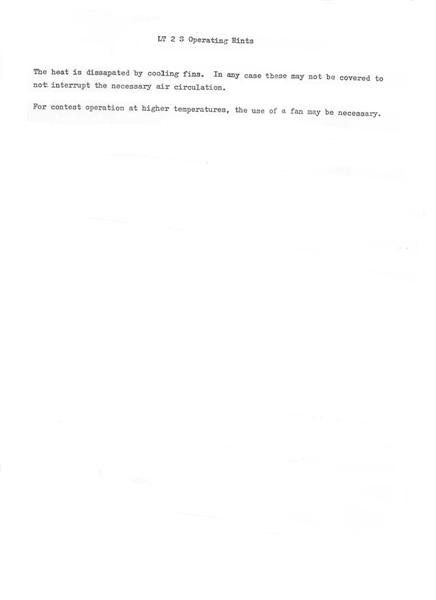

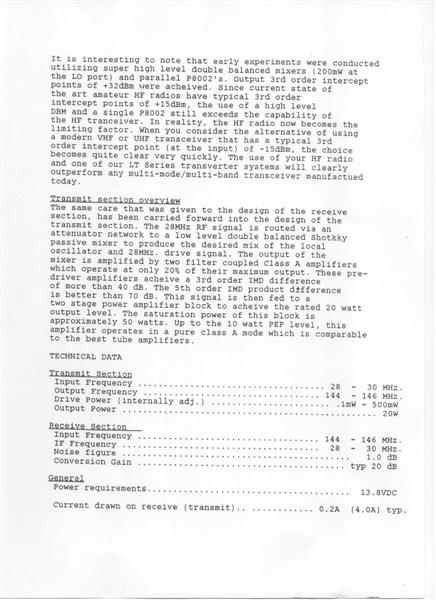

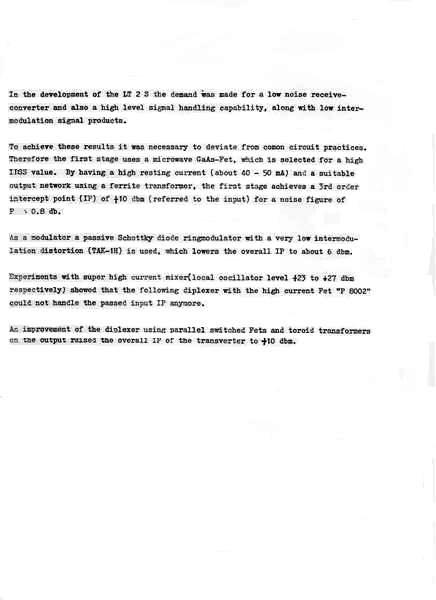

Page 2

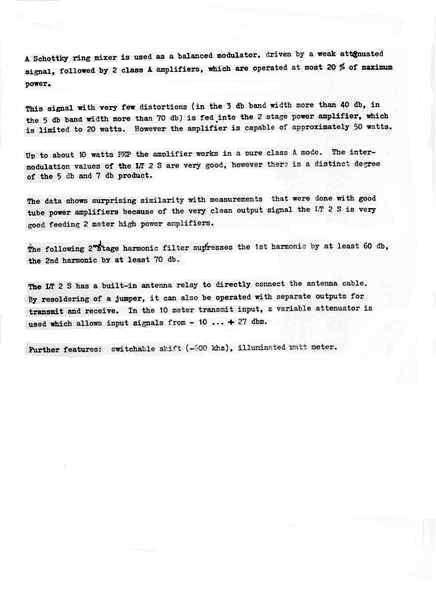

Page 3
Page 4
Page 5

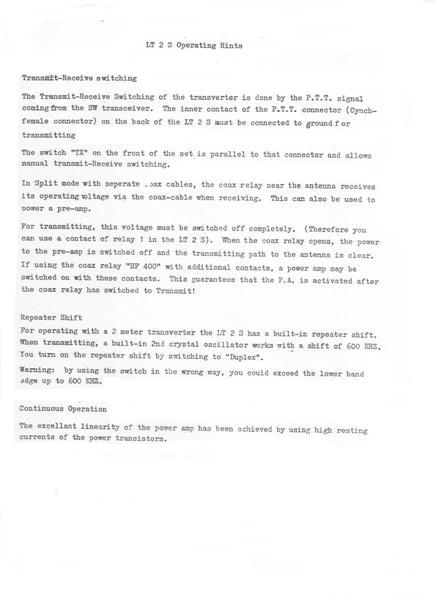

Page 6
Page 7
Page 8
Page 9
Page 10
Page 11

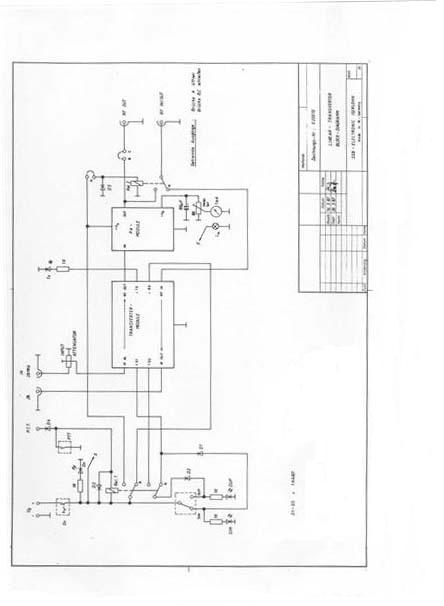

Page 12 Schematic 1

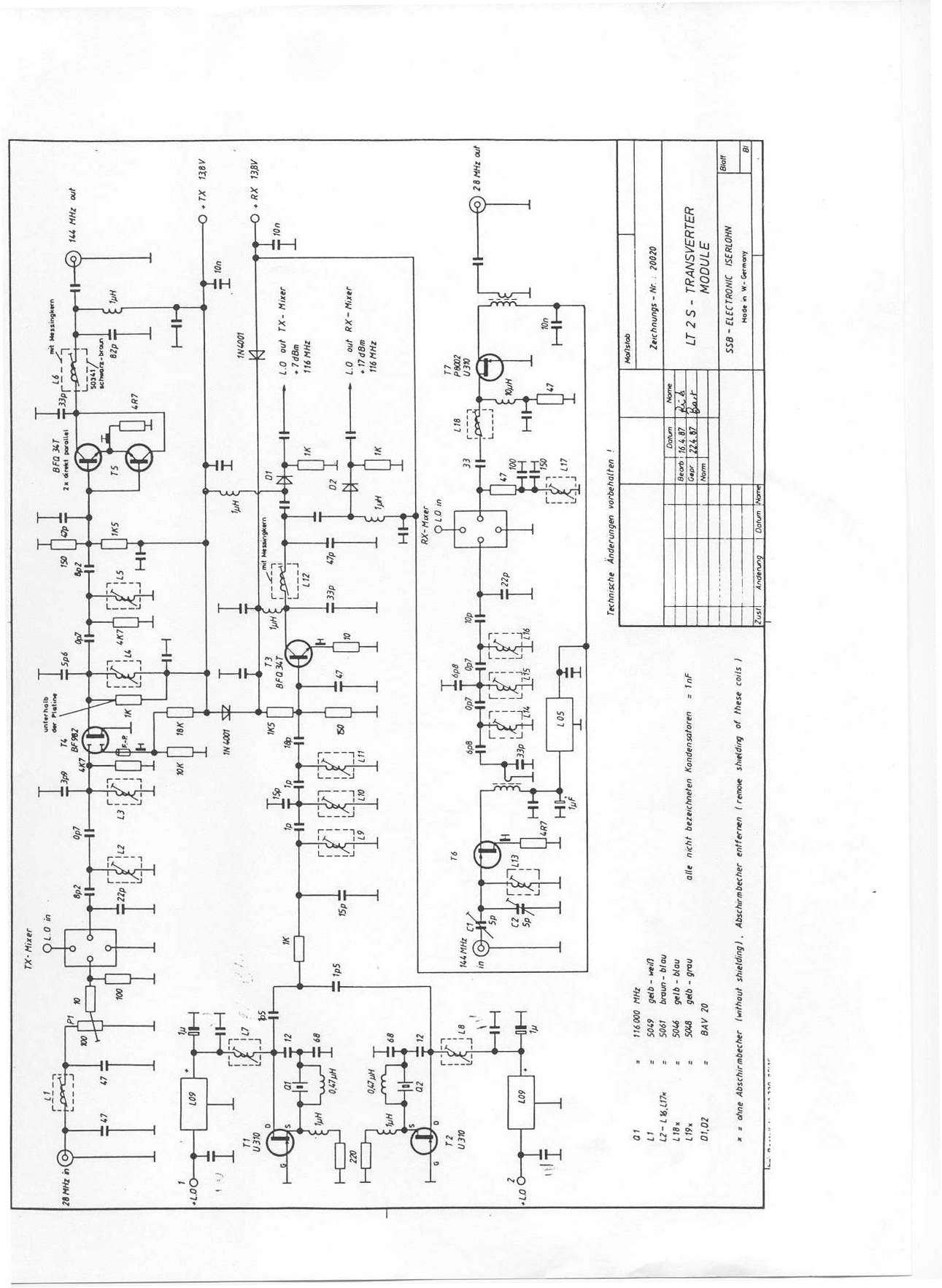

Page 13 Schematic 2 (646KB)

ZIP file (1005KB)

Since Google's crawler came by, I have received requests to put the `high-res` images on the site. Given your bandwidth is sufficient you are welcome to these (currently uncorrected) pages.
The scanned JPEG images are offered here as .ZIP files. Consequently you must download them if you want them - you cannot 'view'.
Note before you begin; the schematics (3) are around 3.5 Megabytes in size and the other pages are <> 1 Megabyte each.

More to come....

Note that there is no breach of copyright here intended.
The images are provided as a service to colleagues in the Amateur Radio community.
