Microwave Modules MMT144/28-RY Transverter

Handbook and Circuit diagrams

Click on the link to display the file, right-click the image or the link (below) to save locally and view in your favorite application.
Fri 2003 05 23: Had time to review sizes of files - now smaller but retaining definition.

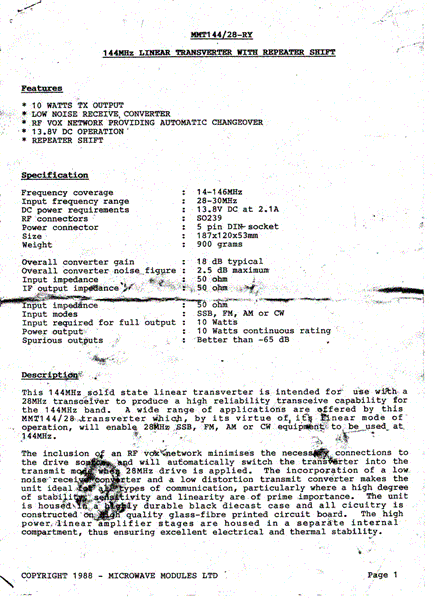

	54 Kb 	Manual Page 1

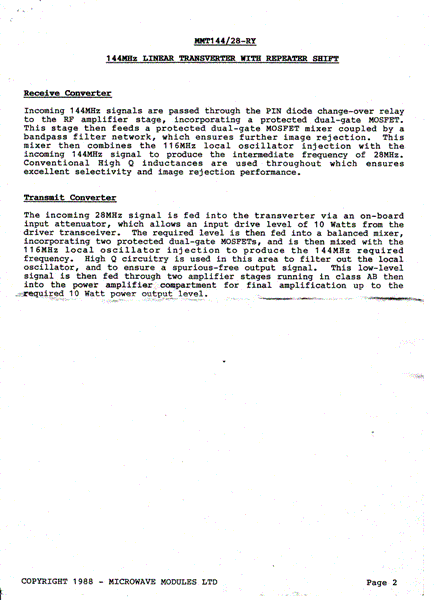

	34 Kb 	Manual Page 2

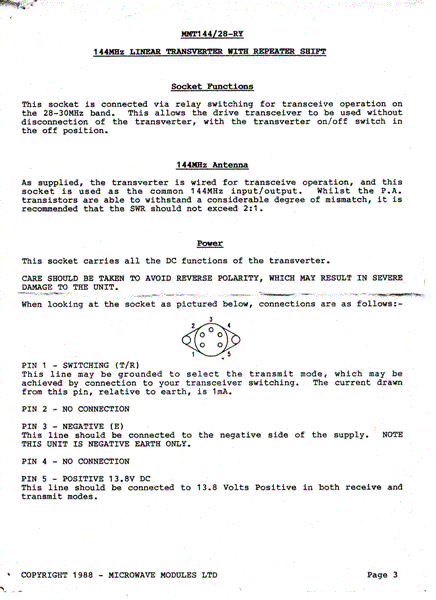

	34 Kb 	Manual Page 3

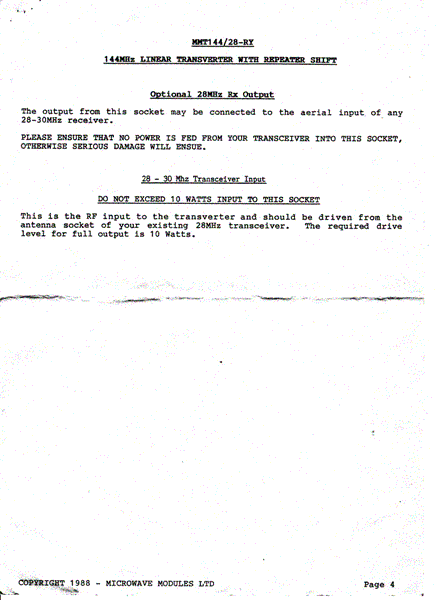

	24 Kb 	Manual Page 4

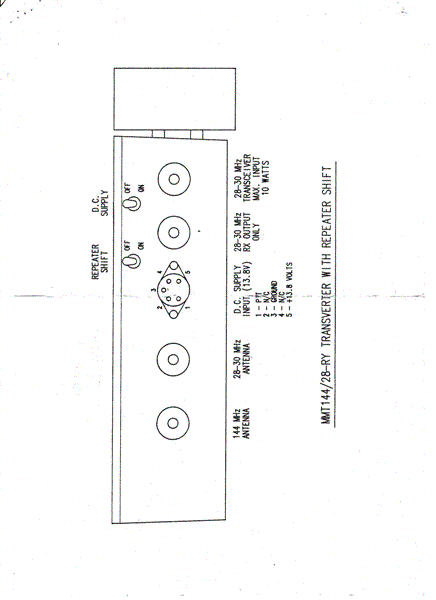

	18 Kb 	Manual Page 5

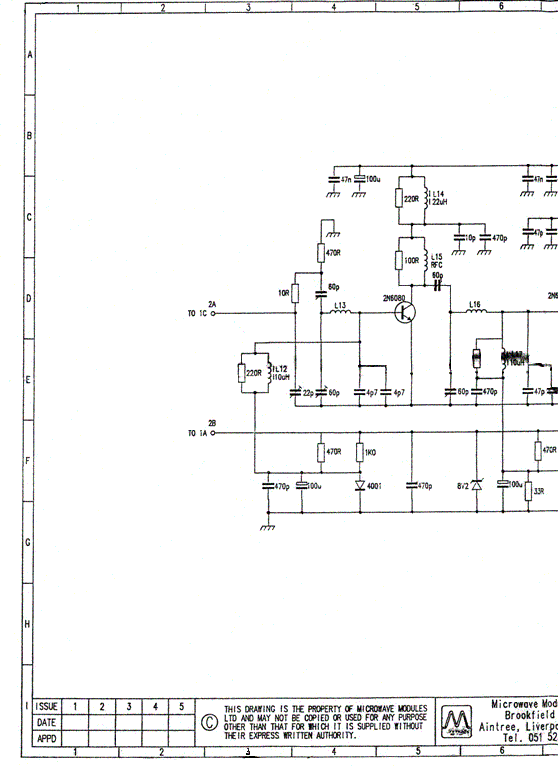

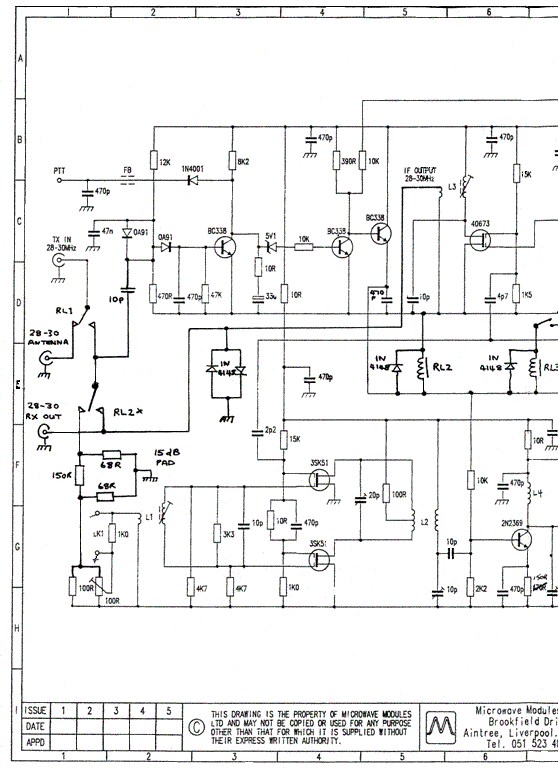

	64 Kb 	Main PCB (A3) Left side

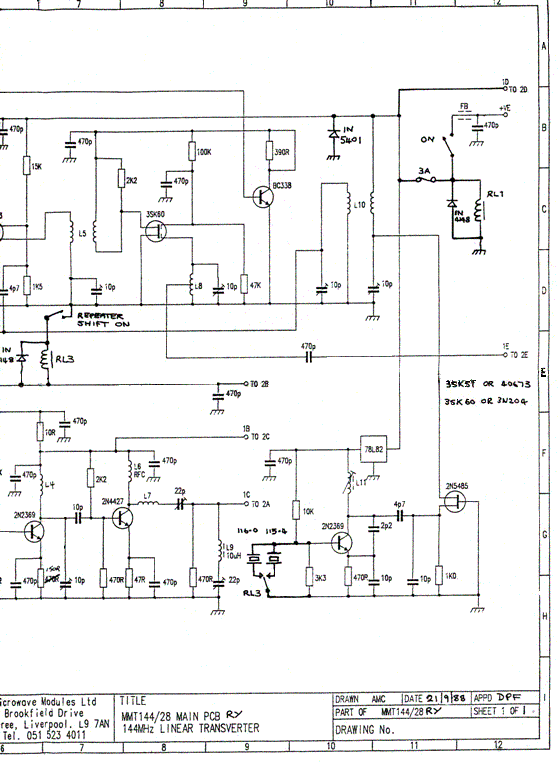

	61 Kb 	Main PCB (A3) Right side
	49 Kb 	PA (A3) Left side

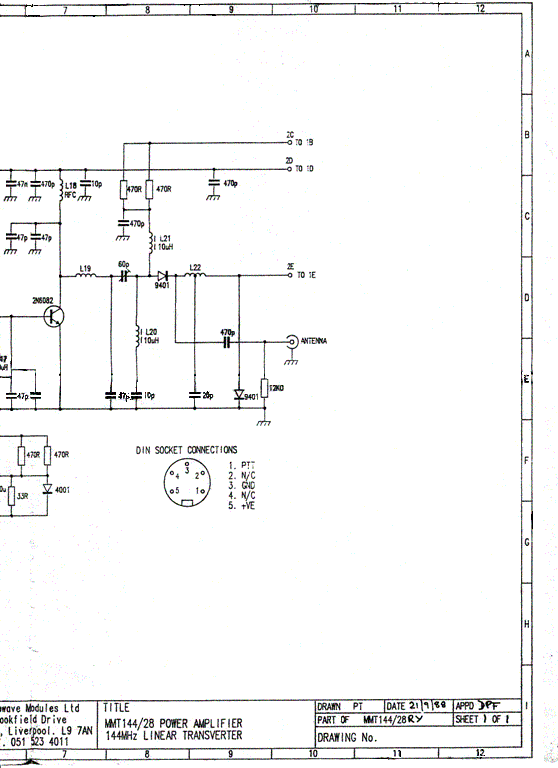

	52 Kb 	PA (A3) Right side
