Some Photos of the N1BUG EME Station

QRV 1987 to 1994 from FN55mf

Note: I have "fixed" these photos twice. I upload them to the server and view the page, all is well.... I come back a month later and they have gone black and white again!? This is just plain weird.

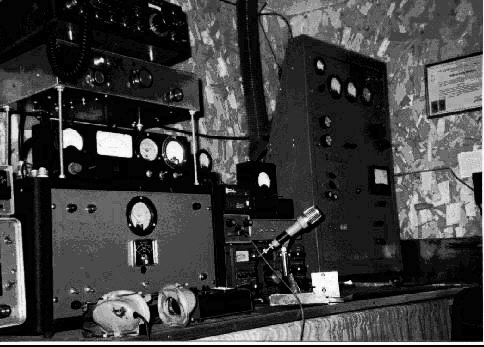

16 x 4 element quads (1987-1990) and EME operating position (1990)

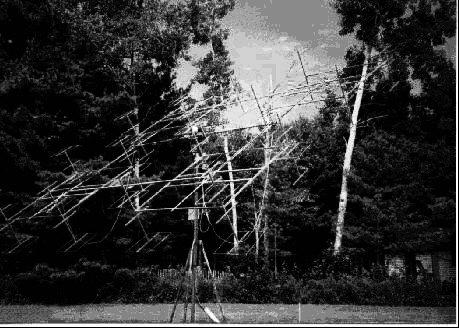

16x4 Quad array

Station

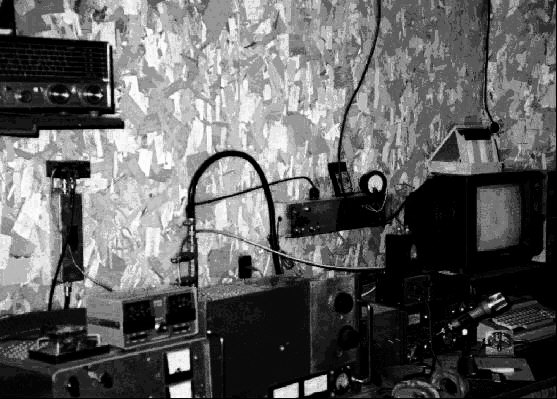

24 x 4 element quads (1991-1994) and EME operating position (1992). Details of the elevation drive.

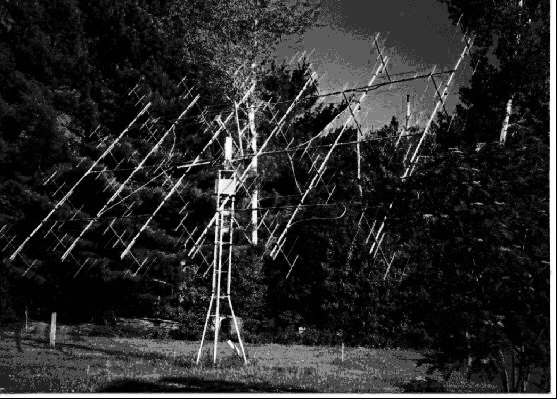

24x4 Quad array

Shack


The 4CX1000A amplifier (1992-1994)
A common reaction from those who saw inside it was "That thing will never work!";
But, I have a lot of EME QSO's to prove it did.

Front

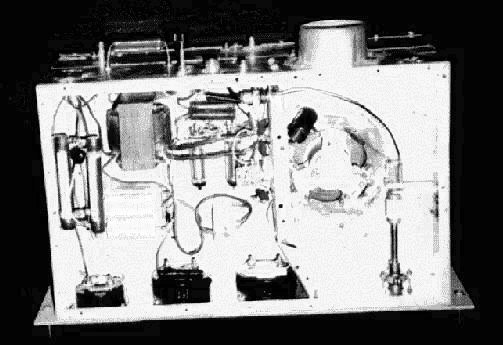

Grid

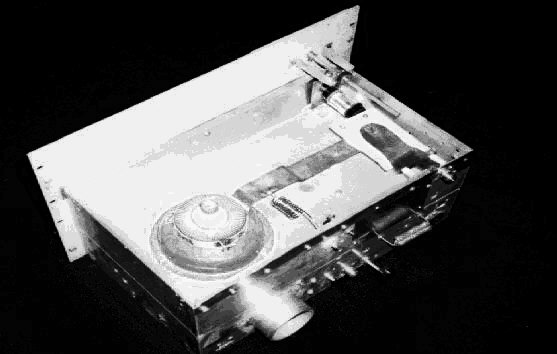

Plate
